How Do Airports on the Sea Look on a Map? Kansai and Centrair on the Aircraft Overflight Layer

Hello from the MAPRISE team.

In the previous post we looked at Haneda, Narita, Kansai, Itami and Fukuoka on the new "Aircraft Overflight Frequency (Reference)" layer. This time we take a closer look at the two airports built on islands reclaimed from the sea that we could not cover properly there: Kansai International Airport and Chubu Centrair International Airport.

Two airports built on the sea

Kansai International Airport opened on September 4, 1994 on an artificial island in Osaka Bay. Runway B (4,000 m) on the second island joined Runway A (3,500 m) in August 2007, and the national government describes it as Japan's first international hub airport capable of full 24-hour operation.

Centrair opened in 2005 on an artificial island off Tokoname, Aichi. It has one 3,500 m runway, and the runway is reported to need closing for maintenance at night. The Ministry of Land, Infrastructure, Transport and Tourism has announced that a second, 3,290 m runway is scheduled to open on March 31, 2028.

Kansai: a red band running from the island over the sea

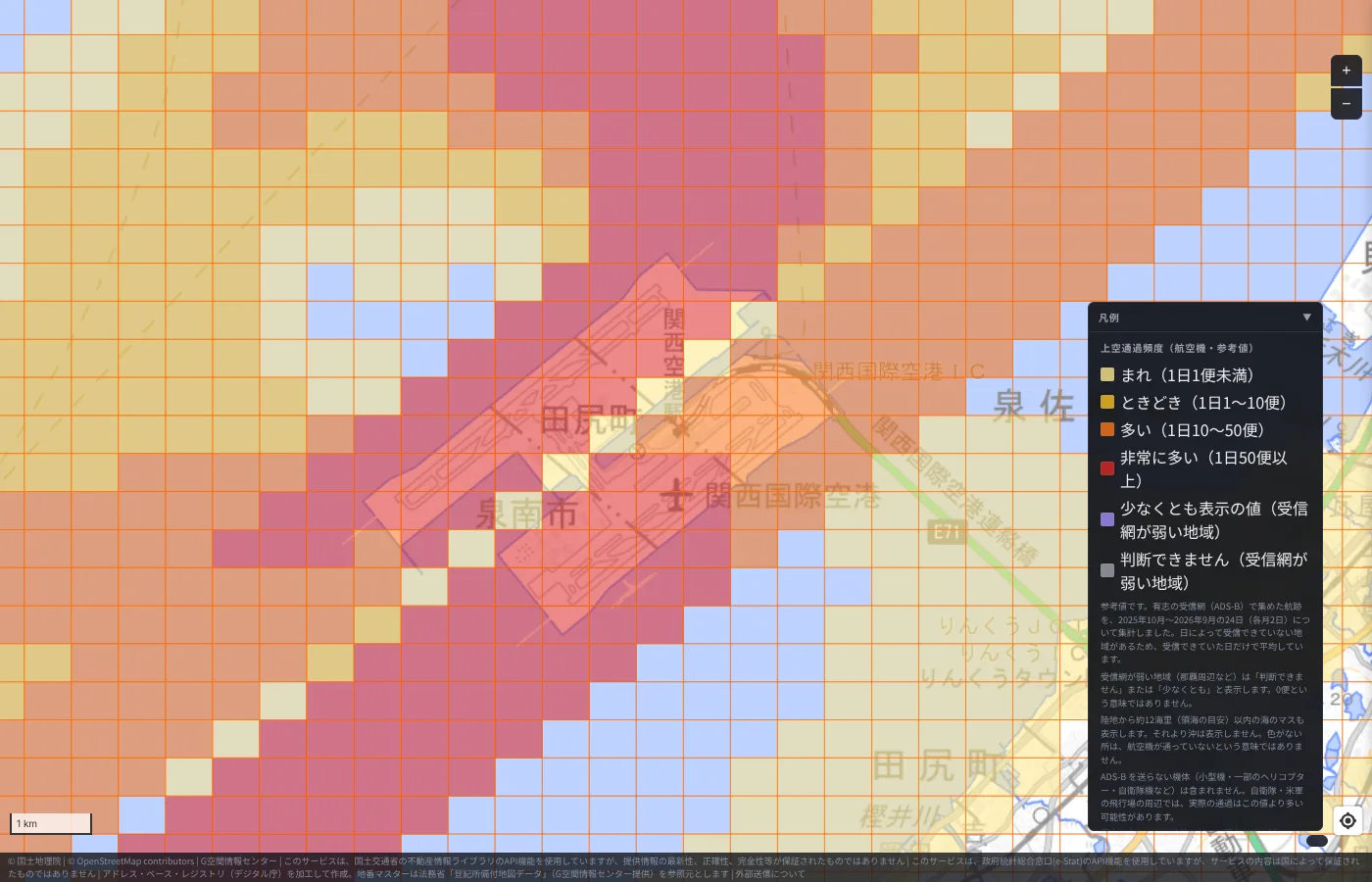

The island is packed with red cells. At the busiest cell, 183 flights per day passed within 1 km, and the average over the cells on the island was around 100 flights per day. You can also see the cells lining up along the two runways.

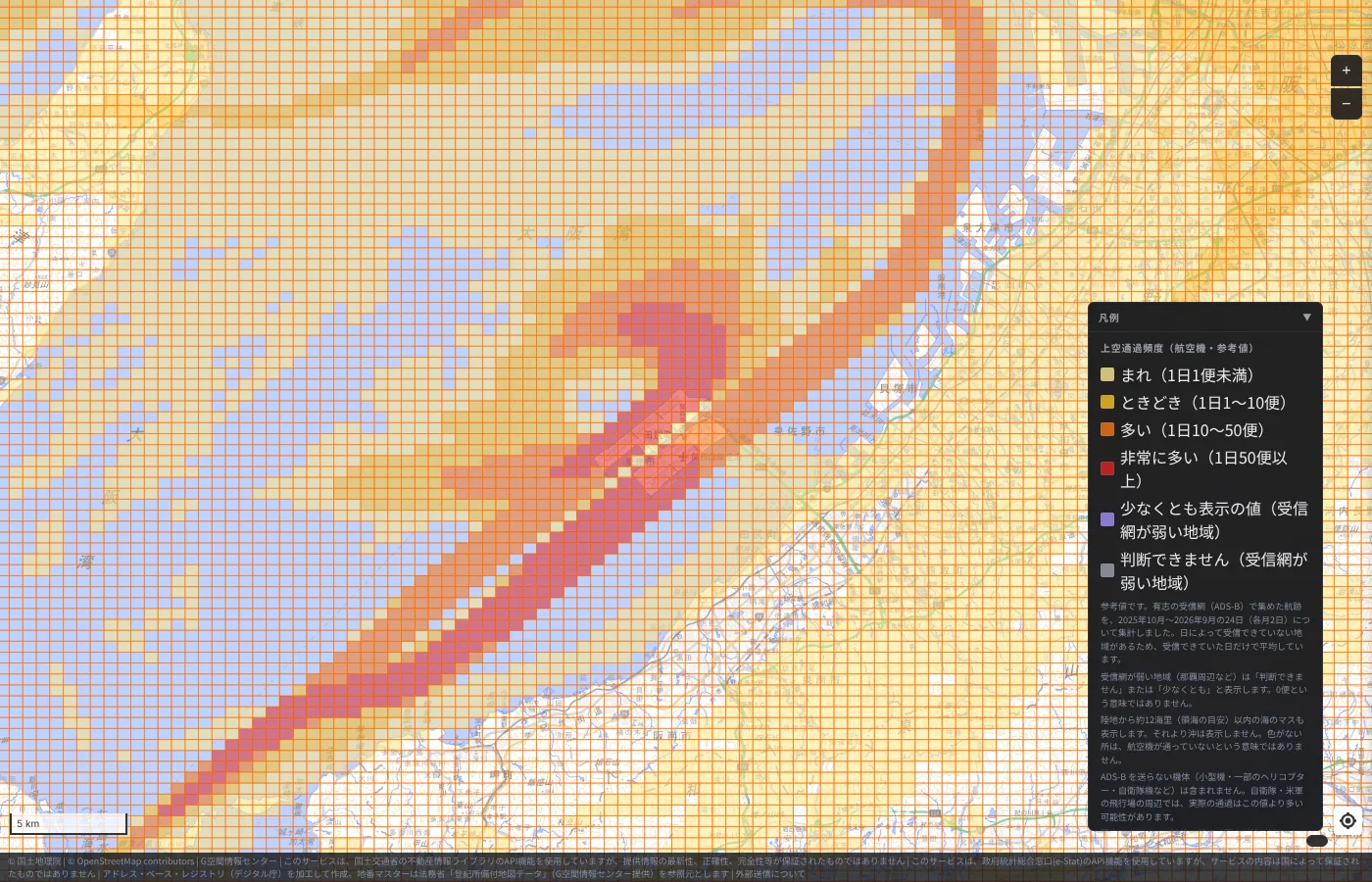

Zooming out, a long red band runs from the island to the southwest over the sea, and an orange band arcs along Osaka Bay to the northeast. On land, pale yellow cells spread everywhere. It makes clear that the approach paths to the island lie over the sea.

Centrair: along a single runway

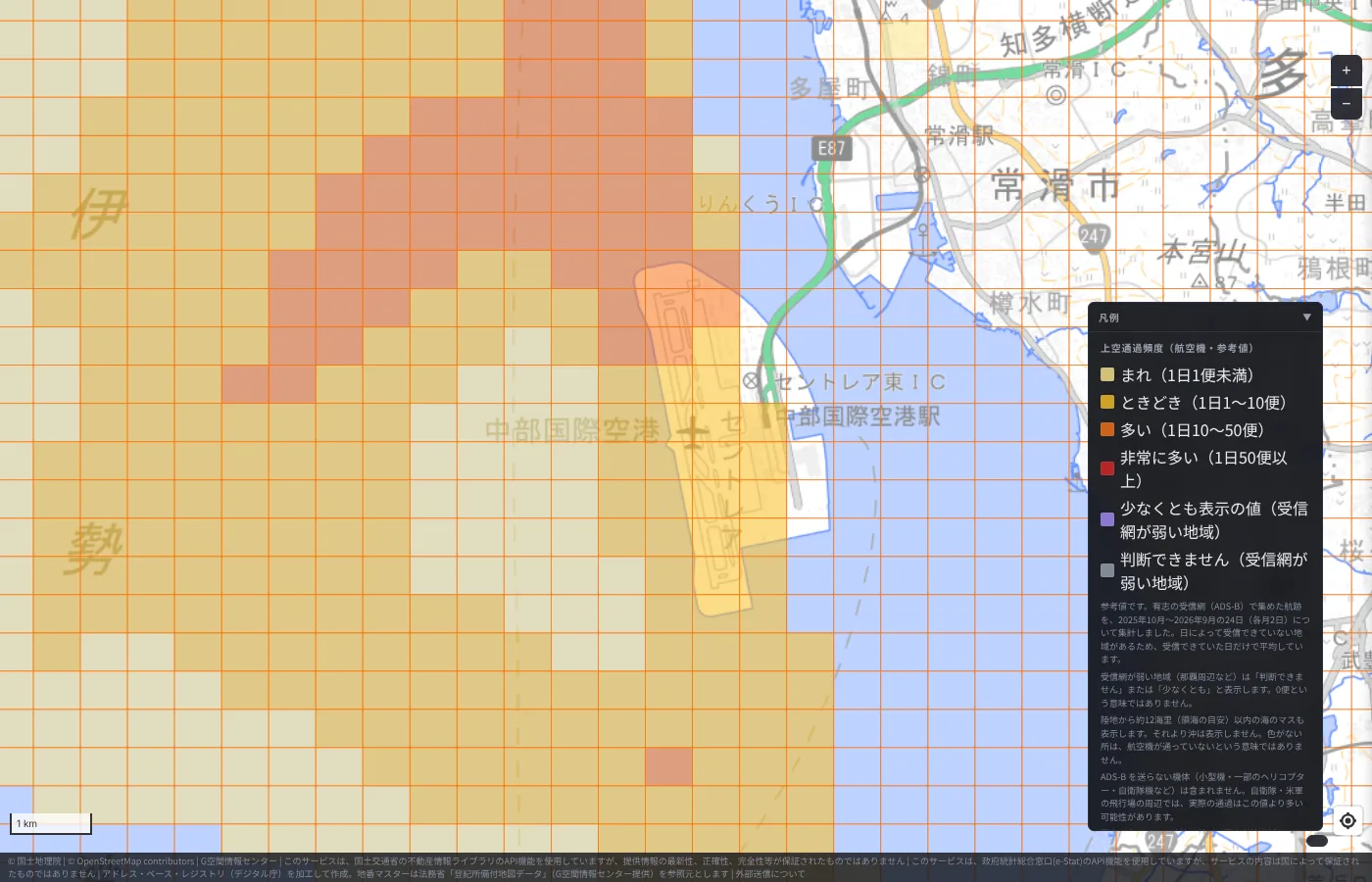

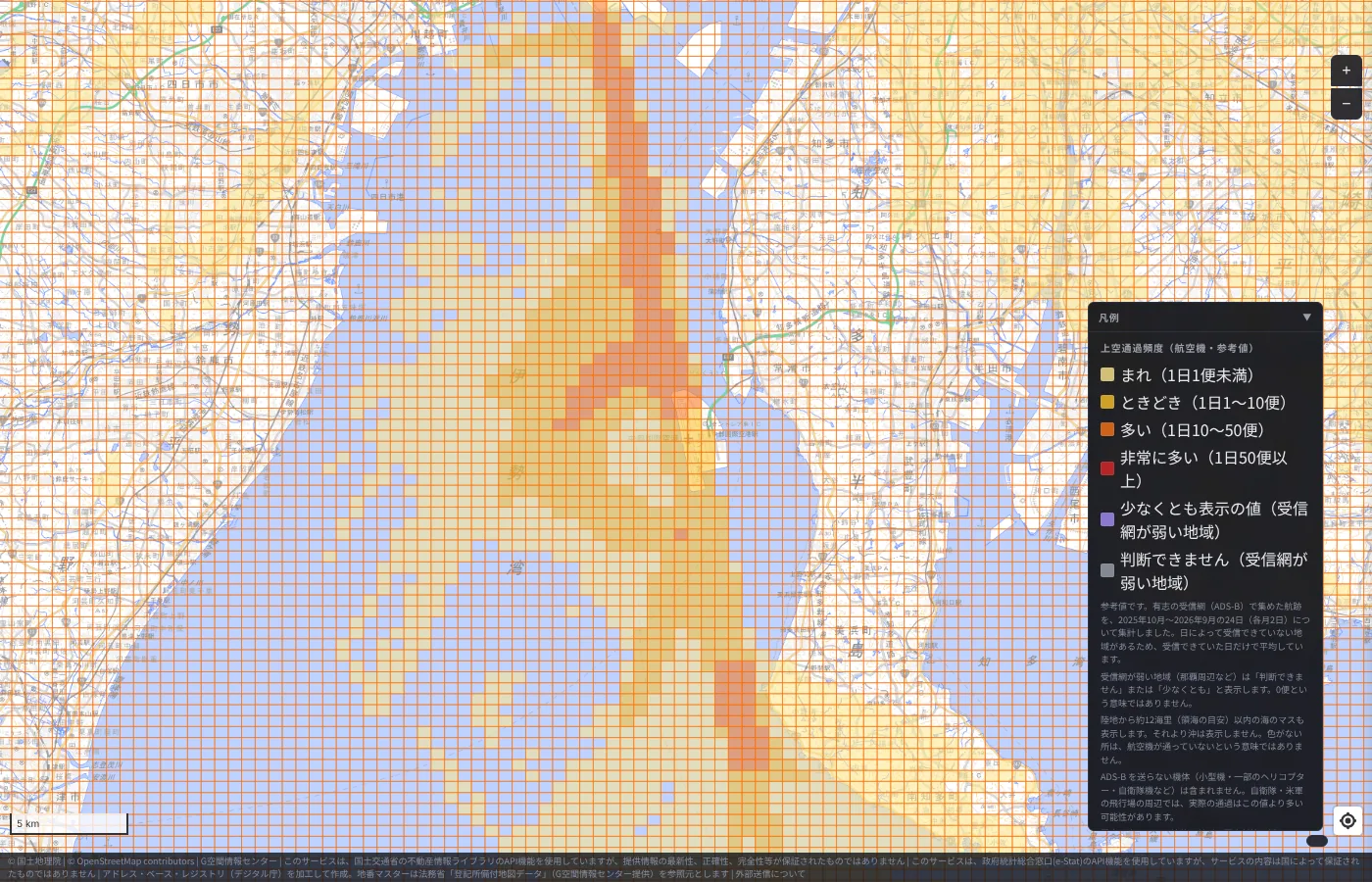

At Centrair, the darkest colors are on the island and on a band running north from it over the sea. Among the cells on the island, even the busiest has about 21 flights per day, in the "Frequent (10–50 flights/day)" band. Compared with Kansai's "Very frequent", the difference in scale shows up directly in the color. The shape of a long, narrow island with one runway can also be read from the cells.

The night share is not as different as we expected

Because both airports can operate at night, we expected many night flights and looked at the "night share (22:00–7:00)" for each cell. On the islands it was about 10% at Kansai and about 8% at Centrair.

At the points we clicked in the previous post, Haneda was 9% and Narita 6%, while Itami and Fukuoka, which have operating-hour limits, were 0%. So a 24-hour airport does not necessarily have a much larger night share. This share covers 22:00 to 7:00 together, including flights at 22:00–23:00 and 6:00–7:00; it does not separate out only the late-night flights.

How far over the sea are cells shown?

In the first version of this article we wrote that we did not know why the sea outside the islands has no color. We have since looked into it: the cause was not a lack of data, but that we had not put cells over the sea on the map.

We have therefore updated the layer to also show sea cells within about 12 nautical miles of land (a rough guide to territorial waters). Areas farther offshore are not shown. Actual territorial waters are measured from the "baseline", but here we substitute the straight-line distance from land cells, so this is only a rough guide. It does not match sea areas where the territorial sea is narrower, such as some straits, or areas bordering neighboring countries.

Checking against the aggregation results, within 5-10 km of Kansai over the sea there are cells where up to about 165 flights per day pass within 1 km, and 54 cells in the "Very frequent (50+ flights/day)" band. Over the sea at Centrair, in the same range, there are cells with about 29 flights per day. Off Haneda it is even higher, up to about 318 flights per day.

Note that over the sea some cells have weak receiver coverage and are shown without color or in the "at least" purple. A cell with no color does not mean that no aircraft pass there. Around Centrair in particular many purple cells appear over the sea, so actual flight counts may be higher than the values shown.

How to view it in MAPRISE

In the "Living facilities / School districts" group, choose "Aircraft Overflight Frequency (Reference)". It can be displayed without logging in. Zoom in and check how the shape of each island relates to the color.

These are reference values only, so please also check the materials published by each airport and municipality before making important decisions. Questions and comments are welcome at info@maprise.jp.
